Advantages of nitrox membrane systems
Cost Efficient
-
Depending on where your business is located, Nitrox costs can range anywhere from 0,5€ to 1€ per scuba tank at 32% If it is mixed using pure oxygen cylinders. on the other hand, Nitrox costs range using the DIVE BREATH membrane system from 0,15€ to 0,25€ per scuba tank at 32%.
Increases Safety
-
In order to transport Oxygen cylinders to your business, the gas must be stored at higher pressures at 150 bar; unloading at this pressure is very dangerous and runs the risk of leaks, fire, and worker injuries.
Reduces Downtime
-
If you outsource your pure oxygen or nitrox scuba tanks, you are at the mercy of your delivery company when it comes to deadlines, delays, shortages or closings. By generating your own nitrox, you always know how much you can generate on any certain time.
Supplying Issues
-
Eliminate any wait times associated with deliveries and cut down on hundreds of hours a year that would normally be spent ordering oxygen cylinders, waiting on deliveries, and any delayed orders that could potentially shut your operation down temporarily.

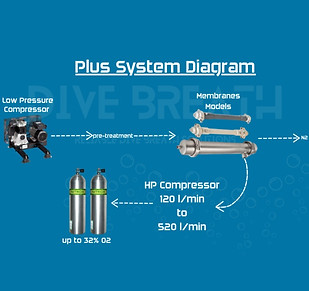

Nitrox Generator Systems
DBMS 120P
Line: Plus
Power: 3 HP
Compressor Type: Reciprocating
Duty Cycle: 25 min 60%
Nitrox Capacity: 120 l/min at 32% - 90 l/min at 36%
High Pressure Compressor Compatibility: Up to 120 l/min
​
DBMS 240P
Line: Plus
Power: 5 HP
Compressor Type: Reciprocating
Duty Cycle: 15 min 70%
Nitrox Capacity: 240 l/min at 32% - 180 l/min at 36%
High Pressure Compressor Compatibility: Up to 240 l/min
DBMS 370P
Line: Plus
Power: 7.5 HP
Compressor Type: Reciprocating
Duty Cycle: 15 min 70%
Nitrox Capacity: 370 l/min at 32% - 275 l/min at 36% - 215 l/min at 40%
High Pressure Compressor Compatibility: Up to 370 l/min
DBMS 520P
Line: Plus
Power: 7.5 HP
Compressor Type: Reciprocating
Duty Cycle: 10 min 70%
Nitrox Capacity: 520 l/min at 32% - 380 l/min at 36% - 300 l/min at 40%
High Pressure Compressor Compatibility: Up to 520 l/min
DBMS 120S
Line: Superb
Power: 3 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 120 l/min at 32% - 90 l/min at 36%
High Pressure Compressor Compatibility: Up to 120 l/min
DBMS 240S
Line: Superb
Power: 5 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 240 l/min at 32% - 180 l/min at 36%
High Pressure Compressor Compatibility: Up to 240 l/min
DBMS 370S
Line: Superb
Power: 7.5 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 370 l/min at 32% - 275 l/min at 36% - 215 l/min at 40%
High Pressure Compressor Compatibility: Up to 370 l/min
DBMS 520S
Line: Superb
Power: 10 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 520 l/min at 32% - 380 l/min at 36% - 300 l/min at 40%
High Pressure Compressor Compatibility: Up to 520 l/min
DBMS 910S
Line: Superb
Power: 15 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 910 l/min at 32% - 665 l/min at 36% - 525 l/min at 40%
High Pressure Compressor Compatibility: Up to 910 l/min
DBMS 1300S
Line: Superb
Power: 20 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 1300 l/min at 32% - 950 l/min at 36% - 750 l/min at 40%
High Pressure Compressor Compatibility: Up to 1300 l/min
DBMS 1820S
Line: Superb
Power: 30 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 1820 l/min at 32% - 1330 l/min at 36% - 1050 l/min at 40%
High Pressure Compressor Compatibility: Up to 1820 l/min
DBMS 2600S
Line: Superb
Power: 40 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 2600 l/min at 32% - 1900 l/min at 36% - 1500 l/min at 40%
High Pressure Compressor Compatibility: Up to 2600 l/min
DBMS 3120S
Line: Superb
Power: 50 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 3120 l/min at 32% - 2280 l/min at 36% - 1800 l/min at 40%
High Pressure Compressor Compatibility: Up to 3120 l/min
DBMS 3900S
Line: Superb
Power: 60 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 3900 l/min at 32% - 2800 l/min at 36% - 2250 l/min at 40%
High Pressure Compressor Compatibility: Up to 3900 l/min
DBMS 4420S
Line: Superb
Power: 70 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 4420 l/min at 32% - 3230 l/min at 36% - 2550 l/min at 40%
High Pressure Compressor Compatibility: Up to 4420 l/min
DBMS 5200S
Line: Superb
Power: 80 HP
Compressor Type: Screw
Duty Cycle: Continuous
Nitrox Capacity: 5200 l/min at 32% - 3800 l/min at 36% - 3000 l/min at 40%
High Pressure Compressor Compatibility: Up to 5200 l/min
